120 Beadlock screws manually🙄!! all my screw guns and drivers in the shop🤦‍♂️..figured I get these out of my way even though their probably going right on the shelf, thinking BRPs when the time comes. I got the diffs all assembled and diff oil loaded to the top of the sun gears. Can't wait for these shiny parts to come...thinking about playing with the shocks next. I'm going to use a light thread sealer rather than plumbers tape to seal the shock bodies. I see that a few guys rigs are vibrating loose and loosing the shock oil. More pics to come.


Attachments

  • 20201116_174712.jpg
    102.6 KB · Views: 3
  • 20201116_160958.jpg
    133.9 KB · Views: 3
  • 20201116_160834.jpg
    80.7 KB · Views: 2

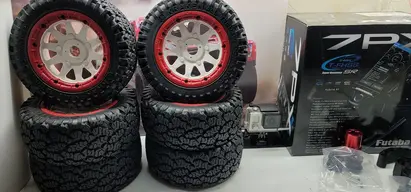

  • 20201116_192419.jpg
    160.3 KB · Views: 3

PortCityRC

LSF Plus Member
PLUS member
Build Thread Contributor
Messages
17
Location
Oswego,NY
Been kicking this thing in the rear-end!!!
wheres my plus membership gone 🤔

that looks hella'expensive🤤
We'll add it up in the end...bet its an ugly number but I think will all worth it..I'm already up to around 4k...wait till the goodies come in the mail..🤘🤘


Attachments

  • 20201116_201254.jpg
    105.4 KB · Views: 4
  • 20201116_220306.jpg
    107.1 KB · Views: 4

PortCityRC

LSF Plus Member
PLUS member
Build Thread Contributor
Messages
17
Location
Oswego,NY
Gonna have to finish the trailing arms tomorrow..need the big clamps..these plastic heim joint bushings are tight as frick even put a touch of heat to it. I best not rush it. Real heims are on order.


Attachments

  • 20201116_225732.jpg
    65 KB · Views: 4
  • 20201116_225743.jpg
    82.3 KB · Views: 4
  • 20201116_214136.jpg
    71.2 KB · Views: 7
  • 20201116_210114.jpg
    106.6 KB · Views: 6
  • 20201116_221316.jpg
    72.6 KB · Views: 6

PortCityRC

LSF Plus Member
PLUS member
Build Thread Contributor
Messages
17
Location
Oswego,NY
Got the trailing arms together and all the sway bar links..bought the IRP billet shock spring cups kits with the included upgraded heim joints..I only wish the heims weren't zinc coated..but its all good..now to get these shocks together and filled..Sorry things are out of order on this build folks..this is my first 5th car build. Thankyou everybody🤘🤘


Attachments

  • 20201117_202457.jpg
    109.5 KB · Views: 5
  • 20201117_202452.jpg
    121.5 KB · Views: 6
  • 20201117_202508.jpg
    90.8 KB · Views: 6
  • 20201117_203733.jpg
    52.1 KB · Views: 5
  • 20201117_203737.jpg
    89.2 KB · Views: 4

PortCityRC

LSF Plus Member
PLUS member
Build Thread Contributor
Messages
17
Location
Oswego,NY
I forgot to mention that I noticed there were different shock valving disks in the kit..I chose the 4 hole valving disks that give it more dampening being my machine will be much heavier. The shocks were cake and they look sweet. Just have to cleanup the tabs on the parts..little ptfe thread sealer on the shock bodies =2hrs no leaky=🤘🥳🤘


Attachments

  • 20201117_230934.jpg
    85.8 KB · Views: 3
  • 20201117_231223_06.jpg
    140.7 KB · Views: 3
  • 20201117_221135.jpg
    96.2 KB · Views: 3
