Finished the wiring loom today
. Starting from the top and working in a clockwise direction, box which houses the receiver and main power switch, next is the main battery cable, the short blue and yellow wires with the connector block attached go to the throttle/brake servo, bottom right is the pot for the throttle/brake servo, the rc receiver, steering pot, steering power cable and in the middle are the two motor controllers. They are sharing a common power feed at the moment and also share the main battery fuse. I blew the 15a so I replaced it with a 20a. It all works fine with the uprated fuse but I'm only testing the motors under no real load so I may have to step up to 25a or maybe even 30a seeing as each controller is rated at 15a each.
Close-up of one of the controllers
, great little pieces of electronics these.

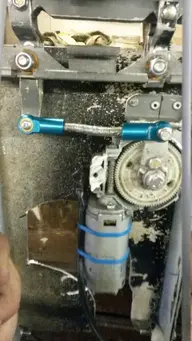

I received the other wiper motor today and I modded it in much the same way as the other one, just need to figure out where to put it lol.
. Starting from the top and working in a clockwise direction, box which houses the receiver and main power switch, next is the main battery cable, the short blue and yellow wires with the connector block attached go to the throttle/brake servo, bottom right is the pot for the throttle/brake servo, the rc receiver, steering pot, steering power cable and in the middle are the two motor controllers. They are sharing a common power feed at the moment and also share the main battery fuse. I blew the 15a so I replaced it with a 20a. It all works fine with the uprated fuse but I'm only testing the motors under no real load so I may have to step up to 25a or maybe even 30a seeing as each controller is rated at 15a each.Close-up of one of the controllers
, great little pieces of electronics these.I received the other wiper motor today and I modded it in much the same way as the other one, just need to figure out where to put it lol.
