Zenoah Engine Torque Specs

Discussion in 'Large Scale RC Engines and Exhaust' started by marder69, Mar 14, 2007.

  1. marder69

    marder69 Well-Known Member

    Joined:
    Feb 21, 2007
    Messages:
    228
    Likes Received:
    0
    Location:
    Newport,South Wales,UK
    Zenoah torque settings -

    Carburetor - 35 Kg.cm
    Insulator - 35 Kg.cm
    Cylinder - 70 Kg.cm
    Crankcase - 65 Kg.cm
    Spark Plug - 110 Kg.cm

    Spark Plug Gap - 0.6 ~ 0.7mm (25 - 30 thou)
    Ignition Coil Gap - 0.3mm

    Hope this helps guys!

  2. Bigger the Better

    Bigger the Better LSF Plus Member
    PLUS member

    Joined:
    Feb 19, 2007
    Messages:
    7,738
    Likes Received:
    2
    Location:
    Minnesota
    Here is another one with some more info. You can find it in the owners manual here on page 5 #6: http://www.zenoah.net/products/hobby/download/G230RC_G260RC_307.pdf

    TIGHTENING TORQUE
    Item, Screw Size, Standard (kg•cm), Limit (kg•cm)
    Carburetor, M5 (P=0.8), 35, 30~40
    Insulator, M5 (P=0.8), 35, 30~40
    Clutch, M6 (P=1.0), 65, 50~80
    Rotor, M8 (P=1.0), 130, 100~150
    Cylinder, M5 (P=0.8), 70, 60~80
    Crankcase, M5 (P=0.8), 65, 50~80
    Spark Plug, M10 (P=1.0), 110, 100~120
    Muffler, M5 (P=0.8), 90, 70~100
    Fan Cover, M5 (P=0.8), 35, 30~40
    Ignition Coil, M4 (P=0.7), 33, 25~40
    Starter Case, M4 (P=0.7), 13, 10~15
    Tapping Screw, TP 4.3, 25, 20~30

    You can use this program to change the measurement from kg/cm to what type of torque wrench you own: http://www.nmbtc.com/Calculators/converter.swf

    #2 Bigger the Better, May 25, 2007
    Last edited: Jun 1, 2007
  3. 46u

    46u Well-Known Member

    Joined:
    May 6, 2009
    Messages:
    1,185
    Likes Received:
    1
    Location:
    Macon, Georgia
    All specifications are either in the Zen or CY manual. The CY is all so in all the HPI baja manuals. Being a motorcycle mechanic and machinist for over 35 years I believe in proper torque. Have to wonder if some of the problems with the base gaskets on 2 bolt engines might be do to improper torque.

  4. fastlane

    fastlane Well-Known Member

    Joined:
    Nov 26, 2009
    Messages:
    51
    Likes Received:
    0
    Location:
    Estherwood, La.
    I am almost positive that was the problem in my 2 bolt. I lost that thing due to lean condition and very little dirt. I also think that choke plate for my 813 let in dirt as well. I will start it differently now.

  5. chitown joe

    chitown joe Well-Known Member

    Joined:
    Dec 7, 2011
    Messages:
    630
    Likes Received:
    0
    sorry but these settings are wrong, you guys are forgetting the point between the numbers,
    heres the correct ones from zenoahs website
    http://www.zenoah.net/ddoc/ZENO/ZENO2010_EUenAPen/ZENO2010_EUenAPen_G240RC,270RC,290RC,EU_.PDF

    MAINTENANCE
    6) TIGHTENING TORQUE
    Items Screw Size Standard (N·m) Limit (N·m) Remarks
    Carburetor M5 (P=0.8) 3.4 2.9~3.9
    Insulator M5 (P=0.8) 4.4 3.9~4.9 with Locktight glue
    Clutch M6 (P=1.0) 6.4 4.9~7.8
    Rotor M8 (P=1.0) 12.7 9.8~14.7
    Cylinder M5 (P=0.8) 6.8 4.7~8.8
    Crankcase M5 (P=0.8) 6.4 4.9~7.8
    Spark Plug M10 (P=1.0) 10.8 8.8~12.8
    Muffler M5 (P=0.8) 8.8 6.9~9.8
    Fan Cover M5 (P=0.8) 3.4 2.9~3.9
    Ignition Coil M4 (P=0.7) 3.2 2.5~3.9
    Starter Case M4 (P=0.7) 1.3 1.0~1.5
    Tapping Screw TP 4.3 2.4 1.9~2.9

  6. MrFnisse

    MrFnisse Well-Known Member

    Joined:
    Jul 4, 2010
    Messages:
    155
    Likes Received:
    13
    Location:
    Malmö, Sweden
    Nah they were not wrong but in kg/cm the ones you posted are in N/m

  7. MrFnisse

    MrFnisse Well-Known Member

    Joined:
    Jul 4, 2010
    Messages:
    155
    Likes Received:
    13
    Location:
    Malmö, Sweden
    Copied the latest specs from the latest engine here (G320RC)


    The "Cover, TR" is not valid for the smaller CC engines (does not exist on those)


    Attached Files:

  8. Peteolheadz100

    Peteolheadz100 Well-Known Member

    Joined:
    Feb 20, 2018
    Messages:
    94
    Likes Received:
    5
    Is this in inch pounds?

  9. Phill2

    Phill2 Well-Known Member

    Joined:
    Apr 29, 2015
    Messages:
    228
    Likes Received:
    15
    Location:
    Yeppoon QLD Aus
    That's in NM

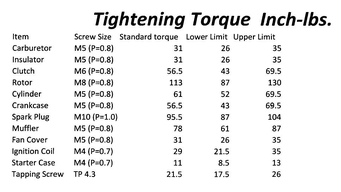

    Below is inch pounds. Torque Settings.jpg
